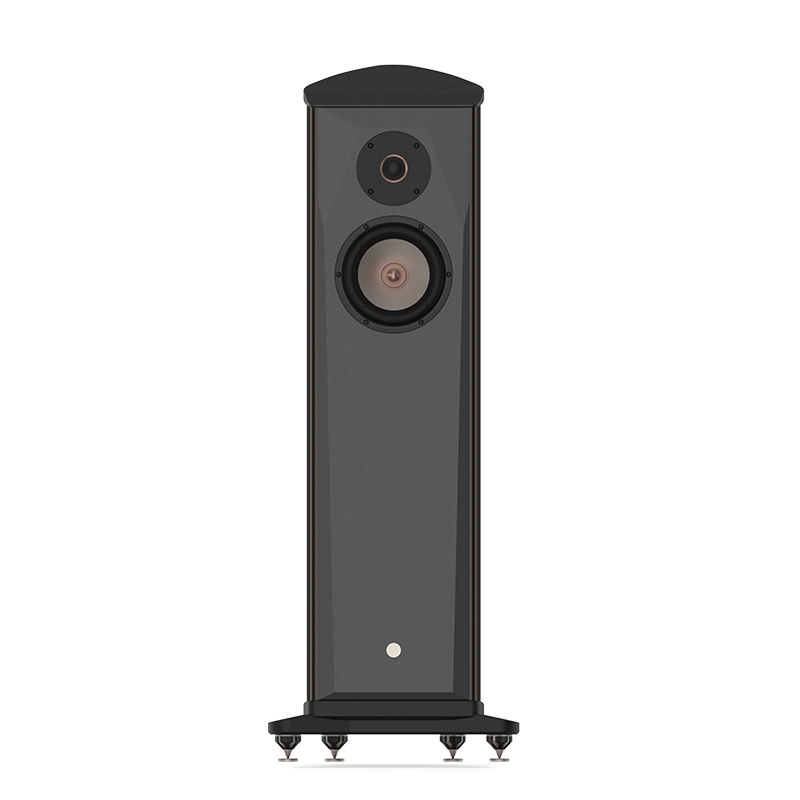

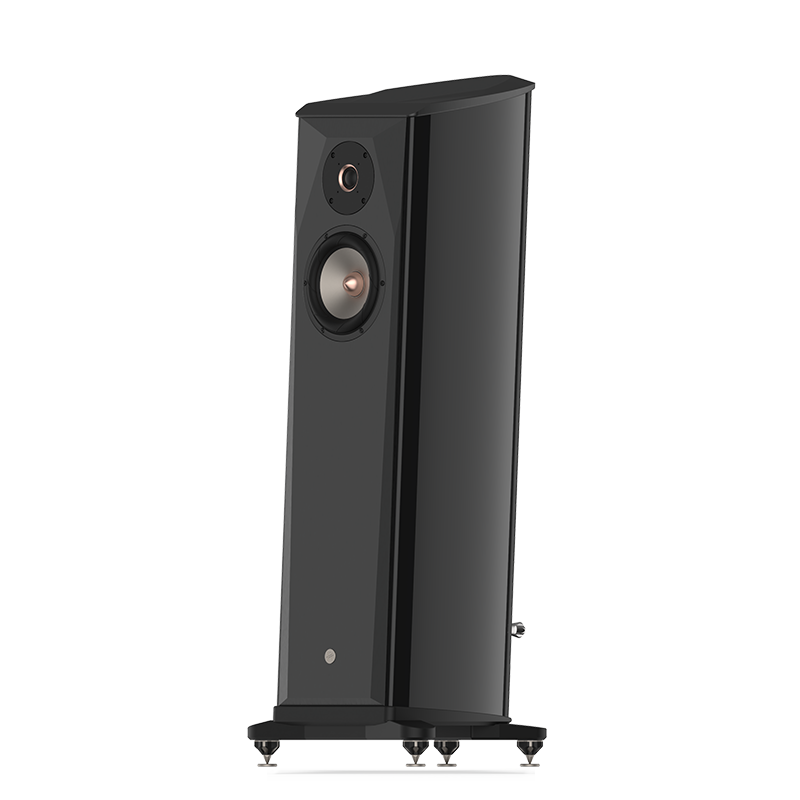

PH1 Loudspeaker Diamond Black

TYPE
2-way passive loudspeaker

DRIVERS
Woofer 7" Seas Graphene Cone

Tweeter 1" Seas SONOMEX Dome
Hexadym Magnet System

INTERNAL WIRING
ORTOFON REFERENCE SPK BLUE
Silver Plated Copper

FREQUENCY RESPONSE
40 - 25 000 Hz Room Average Response

RECOMMENDED POWER
100 W

NOMINAL IMPEDANCE
8 Ω


SENSITIVITY

87 db SPL (2.83V/1 m)

CABINET MATERIAL
Aluminum Alloy Tough 2#

DIMENSIONS
Height: 1055 mm (52")
Width: 390 mm (15.5")
Depth: 394 mm (15.5")

Net weight: 52 kg (115 lbs.) Per Piece

RECOMMENDED ROOM SIZE
15-35 m² (270-700 ft²)
